AR Overlay

The Algorithm

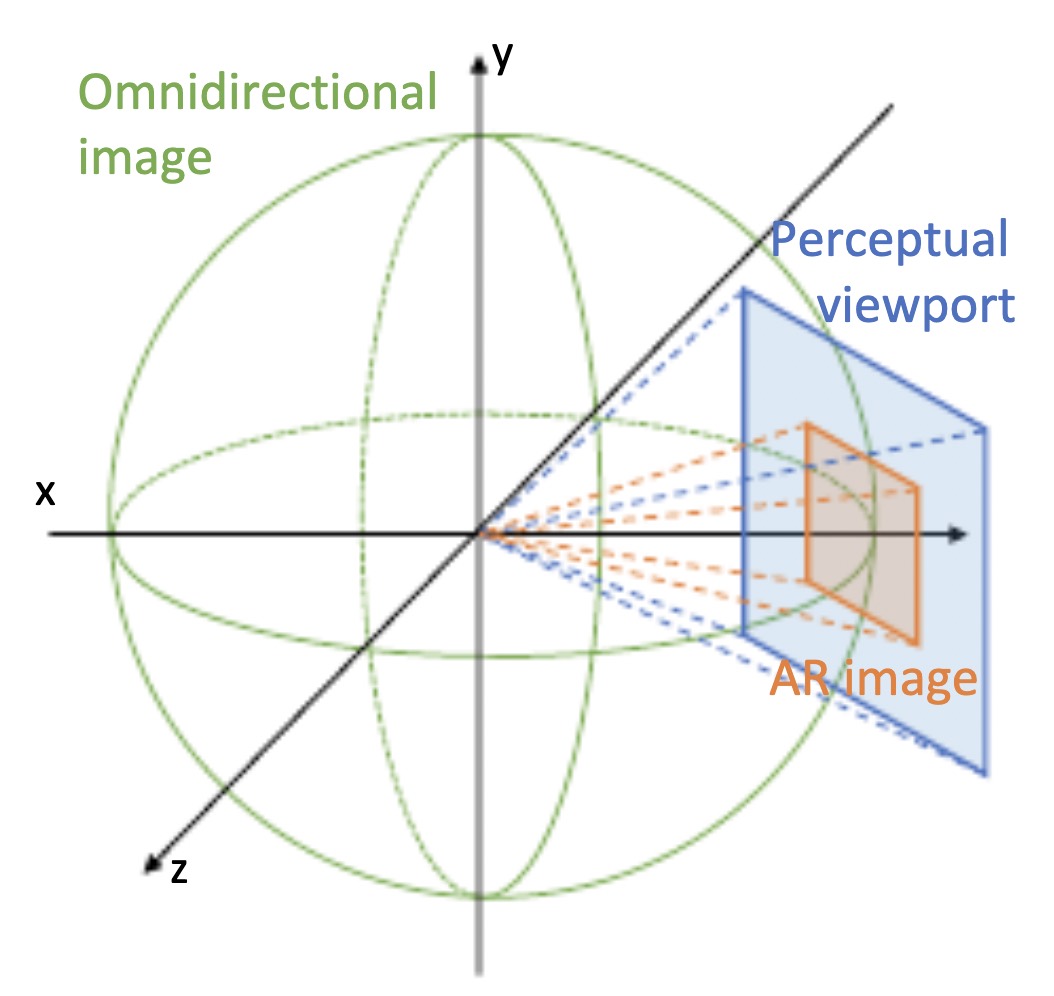

The (roll, yaw) tuple is arbitrarily designated as the upper left corner of the perceptual viewport, which in turn is defined as "the slice" of the 360-degree world that the camera sees in AR space.

@objc private func displayRefreshCb() {
    guard let quat = self.motionManager.deviceMotion?.attitude.quaternion else {
        return
    }

    let gq = GLKQuaternionMake(Float(quat.x), Float(quat.y), Float(quat.z), Float(quat.w))
    let yaw = Utils.rad2deg(rad: atan2f(2*(gq.x * gq.y + gq.z * gq.w), 1 - 2*(gq.y * gq.y + gq.z * gq.z)))

    // kalman filtering here if necessary

    let roll = Utils.rad2deg(rad: atan2f( 2*(gq.w * gq.x + gq.y * gq.z), 1 - 2 * (gq.x * gq.x + gq.y * gq.y)))
    var pitch = 2 * (gq.w * gq.y - gq.z * gq.x)
    if fabs(pitch) >= 1 {
        pitch = Utils.rad2deg(rad: copysign(Float(Double.pi / 2), pitch))
    }
    else {
        pitch = Utils.rad2deg(rad: asin(pitch))
    }

    pitchLabel.text = String( (pitch * 1000).rounded() / 1000)
    yawLabel.text = String( (yaw * 1000).rounded() / 1000)
    rollLabel.text = String( (roll * 1000).rounded() / 1000 )

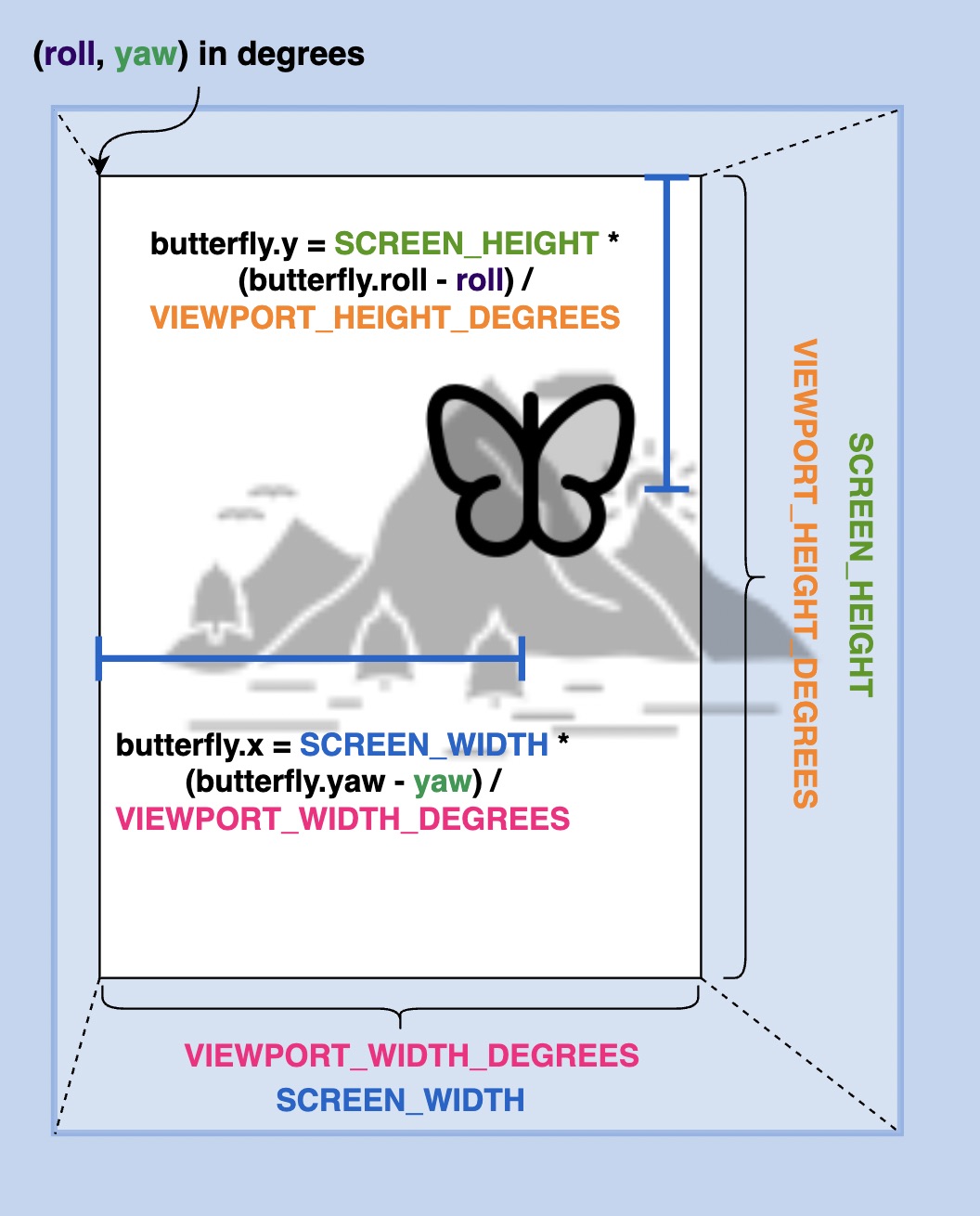

    // Calculate the current viewport (roll, yaw). Do not confuse with (x, y)! Yaw in the *HORIZONTAL* direction whereas roll is in the *VERTICAL* direction
    let roll360 = Utils.to360System(deg: roll)
    let yaw360 = Utils.to360System(deg: yaw)

    let upperLeftCorner = (roll360, yaw360)

    // update the positions of the butterflies now
    self.butterflies.forEach { butterflyWrapper in

//            Project roll_coord and yaw_coord onto the screen
        var butterflyRollCoord = butterflyWrapper.roll_coord
        var butterflyYawCoord = butterflyWrapper.yaw_coord

        if upperLeftCorner.0 >= 360 && ( 0 <= butterflyRollCoord && butterflyRollCoord <= (upperLeftCorner.0 - 360)) {
            butterflyRollCoord += 360
        }

        if upperLeftCorner.1 >= 360 && ( 0 <= butterflyYawCoord && butterflyYawCoord <= (upperLeftCorner.1 - 360)) {
            butterflyYawCoord += 360
        }

        butterflyWrapper.animatedImageView.center.x = self.catchView.bounds.width * CGFloat( Float(upperLeftCorner.1 - butterflyYawCoord)
            / CatchViewController.CATCH_VIEWPORT_WIDTH_DEGREES )
        butterflyWrapper.animatedImageView.center.y = self.catchView.bounds.height * CGFloat( Float(upperLeftCorner.0 - butterflyRollCoord)
            / CatchViewController.CATCH_VIEWPORT_HEIGHT_DEGREES )

        // If it intersects with the crosshairs (rather than within, otherwise too hard to catch) !
        if butterflyWrapper.animatedImageView.frame.intersects(self.focusPoint.frame) {
            butterflyWrapper.enableBorder()
        } else {
            butterflyWrapper.disableBorder()
        }

        butterflyWrapper.moveInRandomDirection()

    }

}
